Silicon Steel

Place of Origin:Wuxi, China
Material: Carbon steel、Stainless steel、Galvanized
Payment Term：T/T, L/C, Western Union, etc
Design Style:customizable
Delivery Time:7 Days
Transportation：By sea or Land transportation

Product Description

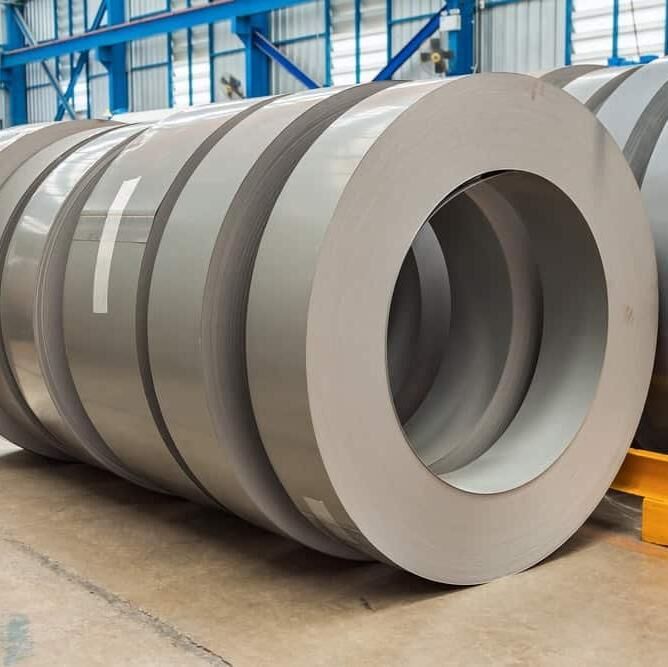

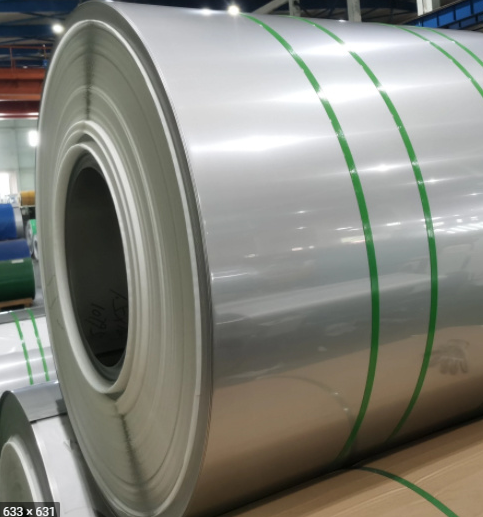

Silicon Steel

Electrical steel, also called lamination steel, silicon electrical steel, silicon steel or transformer steel, is a material used to produce certain magnetic cores, such as stators and rotors in transformers and motors. Electrical steel is also an indispensable material for the power, electronics and military industries.

Non-oriented electrical steel usually contains a level of 2%-3.5% silicon. It has similar magnetic properties in all directions, the so-called isotropy.

Grain-oriented electrical steel usually contains a level of 3% silicon and is processed in a way to develop ideal properties in the rolling direction. Cold-rolled non-grain-oriented steel (CRNGO) is less expensive than cold-rolled grain-oriented steel (CRGO). CRNGO can be used in cost-oriented applications with the inconstant direction of magnetic flux, such as electric motors and generators. CRGO is usually in coil form and has to be cut into laminations further, being used in transformer core applications, such as certain internal parts in audio output transformers.

Product Specification and Size :

Thickness	Width	Slitting	Inside Diameter	Outside Diameter
0.35mm, 0.50mm, 0.65mm	Original: 750~1290mm	40~645mm	508~610mm	800~1550mm

Technical Parameters of silicon steel

Thickness(mm)	Trademark	Theoretical density (Kg/dm2)	Iron loss（W/Kg ）				Magnetic induction (T)
			50Hz		60Hz		Magnetic induction (T)
			1.0T	1.5T	1.0T	1.5T	2500A /m	5000A /m
0.35	35W250	7.60	0.91	2.26	1.15	2.85	1.58	1.67
	35W270	7.60	1.00	2.40	1.26	3.05	1.58	1.67
	35W300	7.65	1.12	2.65	1.40	3.30	1.58	1.67
	35W360		1.24	2.75	1.54	3.40	1.59	1.68
	35W400		1.40	3.18	1.75	3.95	1.59	1.67
	35W440	7.70	1.70	3.75	2.10	4.70	1.58	1.67
0.50	50W270	7.60	0.98	2.40	1.27	3.05	1.58	1.67
	50W290	7.60	1.10	2.60	1.43	3.35	1.58	1.67
	50W310	7.65	1.22	2.83	1.57	3.60	1.58	1.67
	50W350		1.26	2.91	1.60	3.70	1.58	1.67
	50W400		1.45	3.30	1.83	4.15	1.59	1.67
	50W470	7.70	1.63	3.57	2.05	4.50	1.59	1.67
	50W600	7.75	1.90	4.20	2.40	5.25	1.59	1.68
	50W700	7.80	2.30	5.00	2.95	6.40	1.62	1.70
	50W800	7.80	2.85	5.95	3.60	7.60	1.63	1.72
	50W1000	7.85	3.30	6.70	4.10	8.60	1.66	1.74
	50W1300	7.85	3.60	7.45	4.50	9.40	1.67	1.75

Application

Silicon steel is the most important magnetic material in industrial applications. The general applications include volt relays or pulse transformers from the generator, automotive, and transformer sectors.


Applications	Oriented silicon steel			Non-oriented silicon steel			Applications	Oriented silicon steel
	HiB steel	General oriented silicon steel	Thin oriented silicon steel	High grade non-oriented silicon steel	Middle grade non-oriented silicon steel	Low grade non-oriented silicon steel		HiB steel	General oriented silicon steel	Thin oriented silicon steel
	Thickness (mm)							Thickness (mm)
	0.23,0.27,0.30	0.27,0.30,0.35	0.15, 0.20	0.35,0.50,0.65	0.35, 0.50	0.50, 0.65		0.23,0.27,0.30	0.27,0.30,0.35	0.15, 0.20
Large Motors	★	★		★	★		Large Motors	★	★
Medium-sized motor				★	★		Medium-sized motor
Small motor					★		Small motor
Micro motor					★		Micro motor
Sealing motor				★	★		Sealing motor
Intermittent motor					★		Intermittent motor
IF motor				★			IF motor
Compressor							Compressor
Rectifier				★	★	★	Rectifier
Choke					★	★	Choke
Relay				★	★		Relay
Electromagnetic switch				★	★		Electromagnetic switch
Large power transformer	★	★					Large power transformer	★	★
Small & medium power transformer	★	★		★			Small & medium power transformer	★	★
Distribution transformer	★	★					Distribution transformer	★	★
Regulator	★	★		★			Regulator	★	★

Features of ZLYS GO electrical steel products

Excellent electromagnetic property

first-class equipment, leading manufacturing process and strict management ensure the excellent and stable electromagnetic property of ZLYS GO electrical steel.

Outstanding processability

high accuracy dimension and excellent mechanical property are convenient for the users to slit, cut, and laminate.

Preeminent dimensional accuracy

ZLYS’s leading equipment and manufacturing technology ensure good shape, smooth surface, uniform thickness, small intra-plate deviation, and high lamination factor.

Excellent surface coating property

ZLYS electrical steel has a uniform surface coating with good adhesiveness, which can prevent the peeling of the coating during processing; the interlaminar insulation property is good.

More width options

the users can choose from sheet widths of 700-1200mm of ZLYS GO electrical steel, so as to improve the utilization ratio of the material.

Mechanical Property

Mechanical Property
Grade	Yeild Strength(N/mm2)	Ultra-TensionStrength(N/mm2)	Ductility(%)	Hardness(HV1
M35W230	430	560	20.0	225
M35W250	415	550	20.5	220
M35W270	400	515	20.5	215
M35W300	360	480	21.5	195
M35W360	350	480	23.5	190
M35W440	275	420	27.5	165
M35W550	265	415	33.5	160
M50W250	430	560	19.0	230
M50W270	410	550	21.5	225
M50W290	395	545	22.5	220
M50W310	385	510	24.5	210
M50W350	350	475	26.5	190
M50W400	320	460	36.0	170
M50W470	295	425	35.0	160
M50W600	280	410	37.0	140
M50W800	285	405	38.5	135
M50W1300(D)	250	360	40.0	115

Insulating Coating

Insulating Coating
Coating types	M11	M21
Component	Chromium containing , semi organic coating	Chromium free, semi organic coating
Coating thickness(μm)	0.7~1.5	0.8~5.0
Interlayer resistance(Ω•mm2 /slice)	≥100	≥100
Adhesive property	Class A or class B	Class A or class B
Punching property	Excellent	Excellent
Antirust property	Excellent	Excellent
Heat resisting property	Resistant annealing at 750 C, N2 protection, for 2h	Annealing resistance in general
