Stainless steel is a corrosion-resistant alloy of iron, chromium and, in some cases, nickel and other metals.
Completely and infinitely recyclable, stainless steel is the “green material” par excellence. In fact, within the construction sector, its actual recovery rate is close to 100%. Stainless steel is also environmentally neutral and inert, and its longevity ensures it meets the needs of sustainable construction. Furthermore, it does not leach compounds that could modify its composition when in contact with elements like water.
In addition to these environmental benefits, stainless steel is also aesthetically appealing, extremely hygienic, easy to maintain, highly durable and offers a wide variety of aspects. As a result, stainless steel can be found in many everyday objects. It also plays a prominent role in an array of industries, including energy, transportation, building, research, medicine, food and logistics.

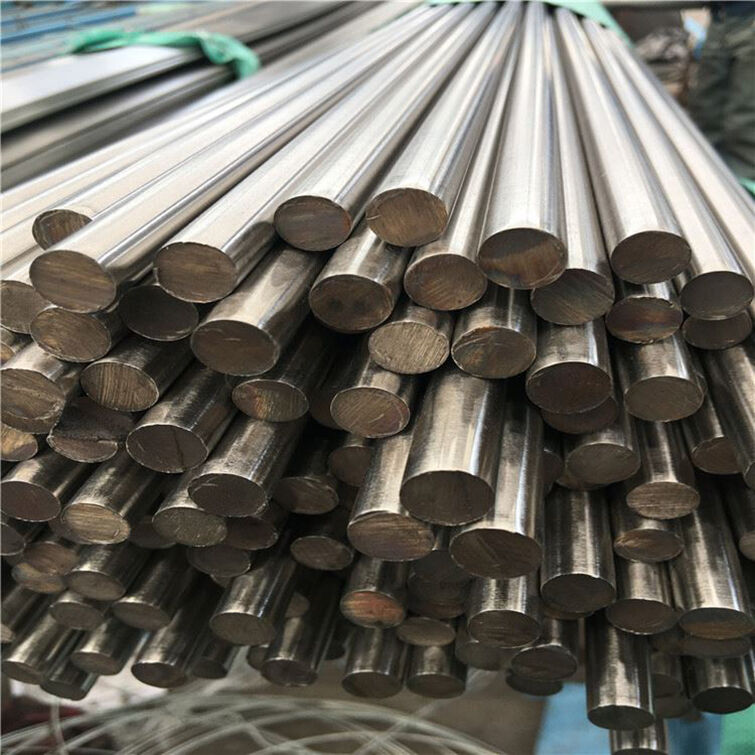

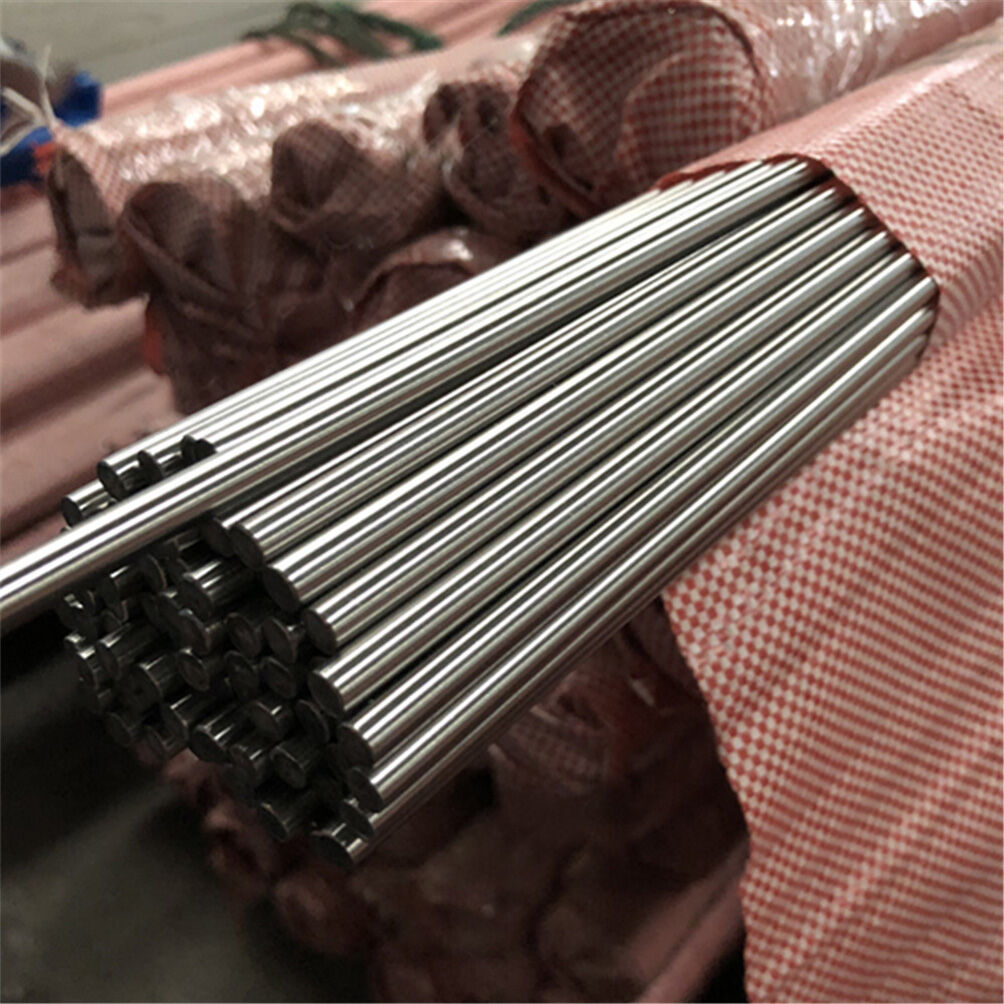

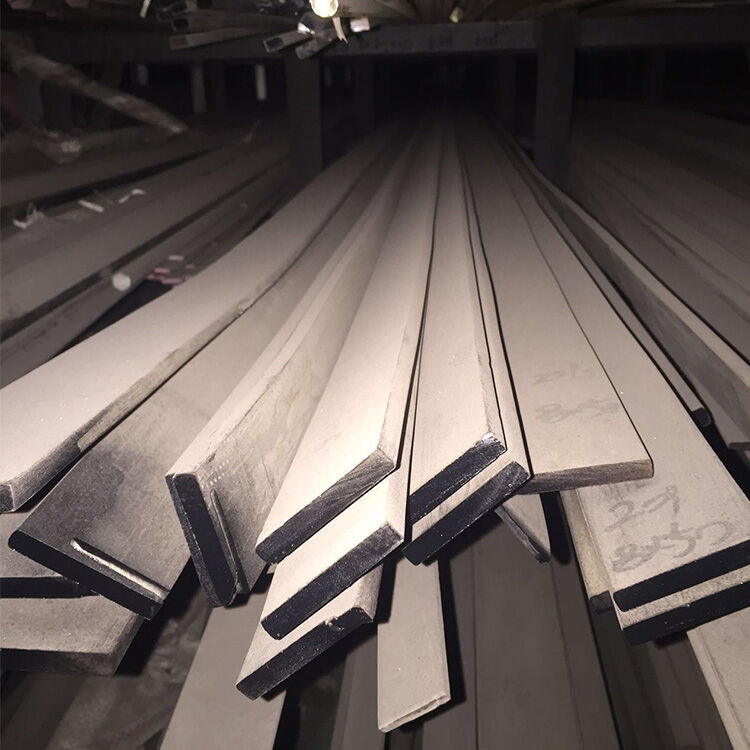

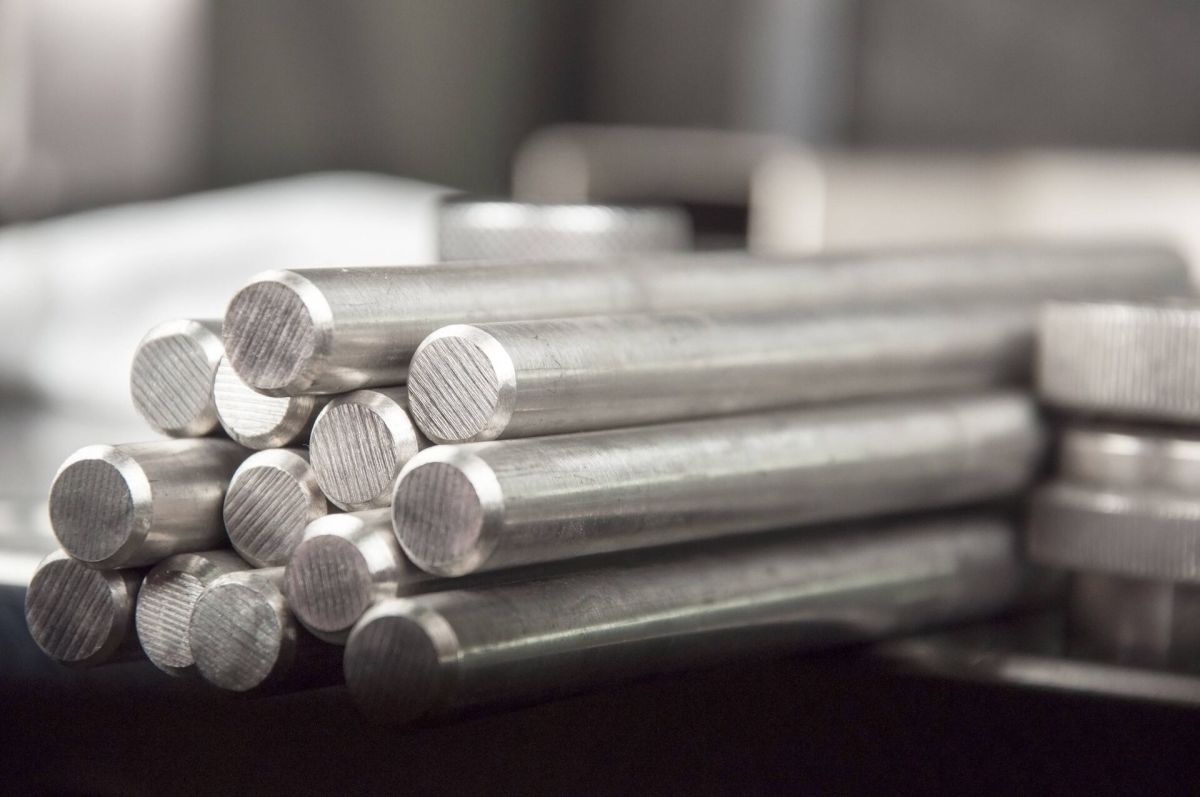

ZLYS provides a wide range of round and flat stainless steel bar to meet your application requirements.

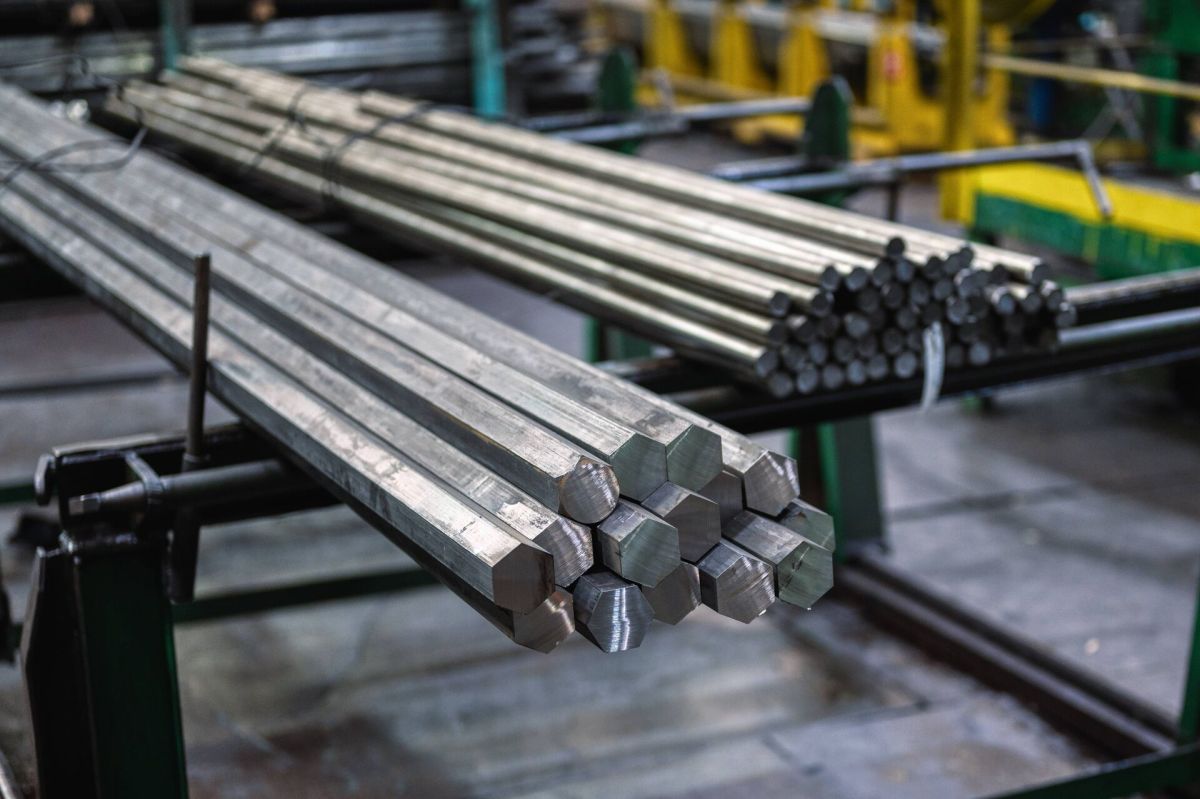

We also offer square steel bar and hex bar in stainless steel and other materials.
Request a quote for your steel bars today.
PRODUCTS DESCRIPTION

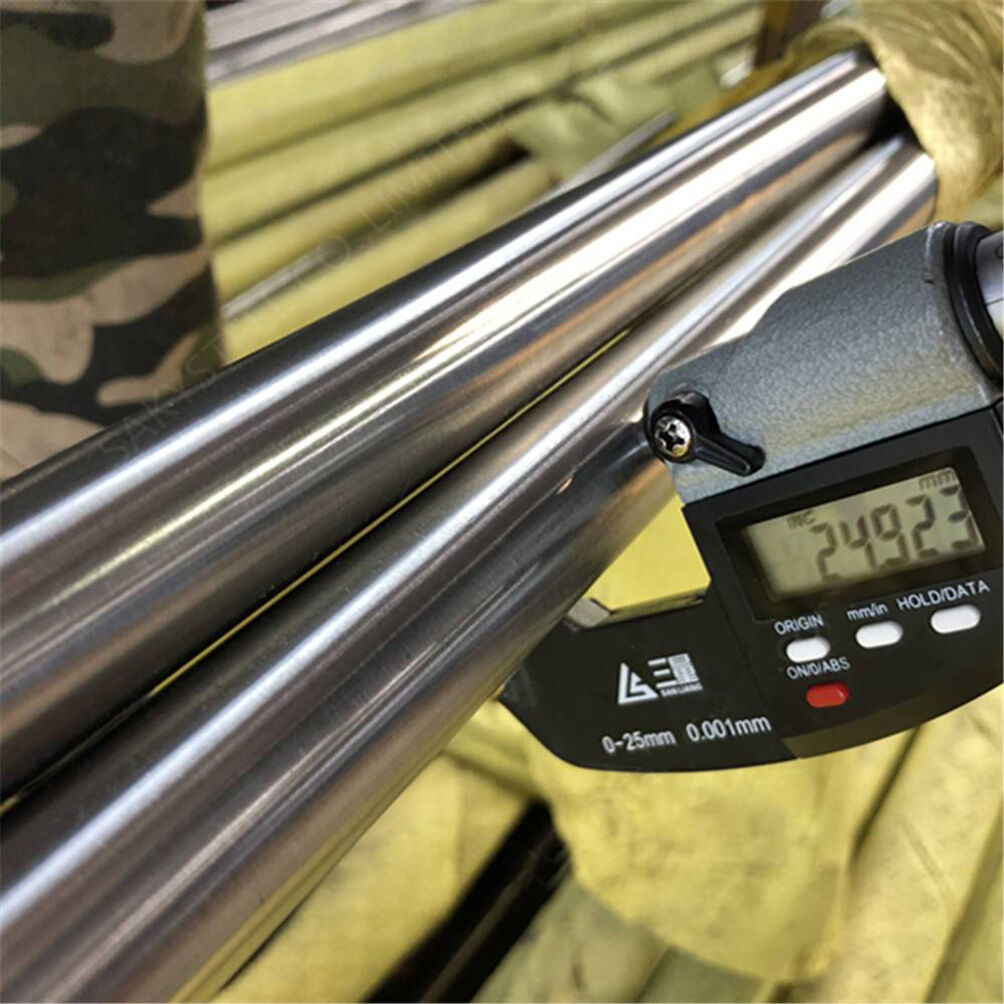

| Size and Shape tolerance of Round Bars |
| Diameyer(MM)_ | Condition | Tolerance |
|
| φ5-12 | （cold drawn and polished) | H9/h9 |
|
| φ13-50 | （Peeled and polished) | H11/h11 |
|
| φ55-100 | （Peeled and polished) | H12/h12 |
|
| φ101-260 | （Peeled) | ±1% |
|
| φ261-300 | （Peeled) | ±1% |
|
| Square Bar |
| size（mm) | weight（kg/m) | size（mm) | weight（kg/m) |
| 3*3 | 0.071 | 28*28 | 6.217 |
| 4*4 | 0.127 | 30*30 | 7.137 |
| 5*5 | 0.198 | 32*32 | 8.12 |
| 6*6 | 0.285 | 34*34 | 9.167 |
| 7*7 | 0.389 | 35*35 | 9.714 |
| 8*8 | 0.508 | 38*38 | 11.451 |
| 9*9 | 0.642 | 40*40 | 12.688 |
| 10*10 | 0.793 | 42*42 | 13.989 |
| 11*11 | 0.96 | 45*45 | 16.058 |
| 12*12 | 1.142 | 48*48 | 18.271 |
| 13*13 | 1.34 | 50*50 | 19.825 |
| 14*14 | 1.554 | 53*53 | 22.275 |
| 15*15 | 1.784 | 56*56 | 24.868 |
| 16*16 | 2.03 | 60*60 | 28.548 |
| 17*17 | 2.292 | 63*63 | 31.474 |
| 18*18 | 2.569 | 67*67 | 35.598 |
| 19*19 | 2.863 | 70*70 | 38.857 |
| 20*20 | 3.172 | 75*75 | 44.606 |
| 21*21 | 3.497 | 80*80 | 50.752 |
| 22*22 | 3.838 | 85*85 | 52.294 |
| 24*24 | 4.568 | 90*90 | 64.233 |
| 25*25 | 4.956 | 95*95 | 71.568 |
| 26*26 | 5.361 | 100*100 | 79.3 |
| Hex Bar |
| size（mm) | weight（kg/m) | size（mm) | weight（kg/m) |
| 7*7 | 0.337 | 26*26 | 4.642 |
| 8*8 | 0.44 | 28*28 | 5.384 |
| 9*9 | 0.556 | 30*30 | 6.181 |
| 10*10 | 0.687 | 38*38 | 9.916 |
| 11*11 | 0.831 | 40*40 | 10.988 |
| 12*12 | 0.989 | 42*42 | 12.114 |
| 13*13 | 1.161 | 45*45 | 13.906 |
| 14*14 | 1.346 | 48*48 | 15.822 |
| 15*15 | 1.545 | 50*50 | 17.168 |
| 19*19 | 2.479 | 53*53 | 19.29 |
| 20*20 | 2.747 | 55*55 | 20.774 |
| 21*21 | 3.029 | 60*60 | 24.723 |
| 22*22 | 3.324 |
|
|
| 24*24 | 3.956 |
|
|
| 25*25 | 4.292 |
|
|
Material Supply
| Type | Grade | Grade | Chemical Component % |
| C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N | Other |
| Austenitic | 201 | SUS201 | ≤0.15 | 16.00-18.00 | 3.50-5.50 | 5.50－7.50 | ≤0.060 | ≤0.030 | - | ≤1.00 | - | ≤0.25 | - |
| 202 | SUS202 | ≤0.15 | 17.00-19.00 | 4.00-6.00 | 7.50-10.00 | ≤0.060 | ≤0.030 |
| ≤1.00 | - | ≤0.25 | － |
| 301 | 1.4310 | ≤0.15 | 16.00-18.00 | 6.00-8.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | ≤0.10 | - |
| 302 | 1Cr18Ni9 | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | ≤0.10 | - |
| 303 | 1.4305 | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.20 | ≤0.030 | - | ≤1.00 | - | - | - |
| 303se | Y1Cr18Ni9Se | ≤0.15 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.20 | ≤0.030 | - | ≤1.00 | - | - | Se 0.15 |
| 304 | 1.4301 | ≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 304L | 1.4307 | ≤0.030 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 304H | 1.4948 | 0.04-0.10 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 305 | * | ≤0.12 | 17.00-19.00 | 11.00-13.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 308 | * | ≤0.08 | 19.00-21.00 | 10.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 309 | 1.4828 | ≤0.20 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 309S | * | ≤0.08 | 22.00-24.00 | 12.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | - |
| 310 | 1.4842 | ≤0.25 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.50 | - | - | - |
| 310S | * | ≤0.08 | 24.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.50 | - | - | - |
| 314 | 1.4841 | ≤0.25 | 23.00-26.00 | 19.00-22.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | 1.50-3.00 | - | - | - |
| 316 | 1.4401 | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| 316L | 1.4404 | ≤0.030 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | - | - |
| 316Ti | 1.4571 | ≤0.08 | 16.00-18.00 | 10.00-14.00 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - | 0.1 | Ti5(C+N)~0.70 |
| 317 | * | ≤0.08 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | 0.1 | - |
| 317L | 1.4438 | ≤0.03 | 18.00-20.00 | 11.00-15.00 | ≤2.00 | ≤0.045 | ≤0.030 | 3.00-4.00 | ≤1.00 | - | 0.1 | - |
| 321 | 1.4541 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Ti5(C+N)~0.70 |
| 321H | * | 0.04-0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Ti5(C+N)~0.70 |
| 347 | 1.4550 | ≤0.08 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Nb≥10*C%-1.10 |
| 347H | 1.494 | 0.04-0.10 | 17.00-19.00 | 9.00-12.00 | ≤2.00 | ≤0.045 | ≤0.030 | - | ≤1.00 | - | - | Nb≥10*C%-1.10 |
| xm-19 | Nitronic50 | ≤0.06 | 20.50-23.50 | 11.50-13.50 | 4.0-6.0 | ≤0.045 | ≤0.030 | 1.50-3.00 | ≤1.00 | - | 0.2-0.4 | Nb:0.10-0.30 V:0.10-0.30 |
| 904L | N08904 | ≤0.02 | 19.0-23.0 | 23.0-28.0 | 4.0-5.0 | ≤0.045 | ≤0.035 |
| ≤1.00 |
| 0.1 | Cu:1.0-2.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Duplex | 2205 | S32205 | ≤0.03 | 22.0-23.0 | 4.5-6.5 | ≤2.00 | ≤0.030 | ≤0.020 | 3.0-3.5 | ≤1.00 | - | 0.14-0.20 |
|
| 2507 | S32750 | ≤0.03 | 24.0-26.0 | 6.0-8.0 | ≤1.20 | ≤0.035 | ≤0.020 | 3.0-5.0 | ≤0.80 | 0.5 | 0.24-0.32 |
|
| * | S32760 | ≤0.03 | 24.0-26.0 | 6.0-8.0 | ≤1.00 | ≤0.030 | ≤0.010 | 3.0-4.0 | ≤1.00 | 0.5-1.00 | 0.2-0.3 |
|
| 2304 | S32304 | ≤0.03 | 21.5-24.5 | 3.0-5.5 | ≤2.50 | ≤0.040 | ≤0.030 | 0.05-0.6 | ≤1.00 | 0.05-0.6 | 0.05-0.2 |
|
| 329 | 1.4460 | ≤0.08 | 23.00-28.00 | 2.00-5.00 | ≤1.00 | ≤0.040 | ≤0.030 | 1.00-2.00 | ≤0.75 | - | - |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Ferrite | 409 | S40900 | ≤0.03 | 10.50-11.70 | 0.5 | ≤1.00 | ≤0.040 | ≤0.020 | - | ≤1.00 | - | ≤0.030 | Ti6(C+N)~0.50 Nb:0.17 |
| 430 | 1Cr17 | ≤0.12 | 16.00-18.00 | - | ≤1.0 | ≤0.040 | ≤0.030 | - | ≤1.0 | - | - | - |
| 430F | Y1Cr17 | ≤0.12 | 16.00-18.00 | - | ≤1.25 | ≤0.060 | ≥0.15 | - | ≤1.00 | - | - | - |
| 444 | S44400 | ≤0.025 | 17.50-19.50 | 1 | ≤1.00 | ≤0.040 | ≤0.030 | 1.75-2.5 | ≤1.00 | - | 0.035 | Ti+Nb:0.2+4(C+N)~0.80 |
| 446 | S44600 | ≤0.20 | 23.00-27.00 | 0.75 | ≤1.5 | ≤0.040 | ≤0.030 | 1.50-2.50 | ≤1.00 | - | ≤0.25 | - |
| Martensite | 410 | 1Cr13 | 0.08-0.15 | 11.50-13.50 | 0.75 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - |
| 410S | * | ≤0.080 | 11.50-13.50 | 0.6 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - |
| 416 | Y1Cr13 | ≤0.15 | 12.00-14.00 | 3) | ≤1.25 | ≤0.060 | ≥0.15 | - | ≤1.00 | - | - | - |
| 420 | 2Cr13 | ≥0.15 | 12.00-14.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - |
| 420J2 | 3Cr13 | 0.26-0.35 | 12.00-14.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤1.00 | - | - | - |
| 420F | Y3Cr13 | 0.30-0.40 | 12.00-14.00 | 0.5 | ≤1.25 | ≤0.060 | ≥0.15 | - | ≤1.00 | 0.6 | - | - |
| * | 4Cr13 | 0.36-0.45 | 12.00-14.00 | 3) | ≤0.80 | ≤0.040 | ≤0.030 | - | ≤0.60 | - | - | - |
| 431 | 1Cr17Ni2 | ≤0.20 | 15.00-17.00 | 1.50-2.50 | ≤1.00 | ≤0.040 | ≤0.030 | - | ≤0.80 | - | - | - |
| 440C | 11Cr17 | 0.95-1.20 | 16.00-18.00 | - | ≤1.00 | ≤0.040 | ≤0.030 | 0.75 | ≤1.00 | - | - | - |
| PH | 630 | 17-4PH | ≤0.07 | 15.00-17.50 | 3.00-5.00 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | 3.00-5.00 | - | Nb 0.15-0.45 |
| 631 | 17-7PH | ≤0.09 | 16.00-18.00 | 6.50-7.50 | ≤1.00 | ≤0.035 | ≤0.030 | - | ≤1.00 | ≤0.50 | - | Al 0.75-1.50 |
| 632 | 15-5PH | ≤0.09 | 14.00-16.00 | 3.50-5.50 | ≤1.00 | ≤0.040 | ≤0.030 | 2.00-3.00 | ≤1.00 | 2.5-4.5 | - | Al 0.75-1.50 |
Request a quote for your steel bars today.
